This product is archived and no longer in production
Unified Bike Company

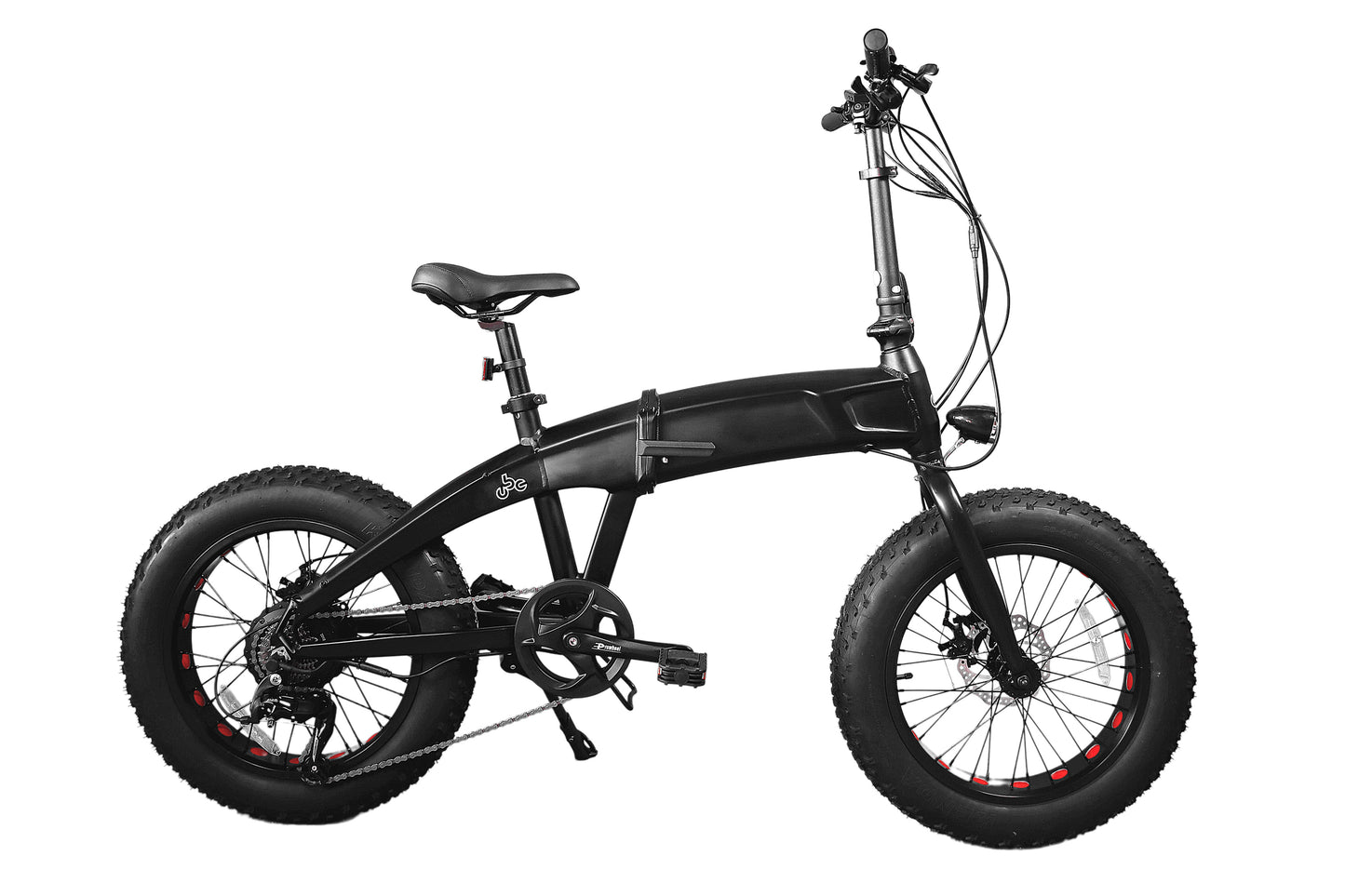

COMPACT ALL-TERRAIN +
COMPACT ALL-TERRAIN +
Foldable electric bike equipped with pedal assist and a throttle up to 20 mph.
Specifications
-
Main Components
Frame: UBC Folding Custom Alloy Frame
Shifter: Sunrace M40 7 Speed
Rear Derailleur: Sunrace M40 7 Speed
Cassette: Alloy
Crankset: Alloy, 44T, 170mm
Chain: KMC 7 Speed
Front/Rear Brake: Tektro Mechanical Series Disc
Brake Levers: Tektro Mechanical Series Disc -
Performance / Electric
Seat Post: Alloy
Saddle: SR Foam
Stem: Alloy, Foldable
Handlebar: Alloy, Low Rise
Grips: Lock grips
Pedal: Platforms, Foldable
Hub: Alloy
Spokes: Steel
Rim: Double Wall Alloy
Tire: Kenda 20x4"
Light: Removable, Battery-Powered, Front -
Max Load: 275 lbs
Weight: 62 lbs
Max speed- 20 mph, Class 2
Driving distance- 15-30+ miles (200 lbs total load)
Motor: 300W Brushless Rear Motor, 6 magnetic points, RPM
Battery: 280Wh Samsung Lithium-ion Inner-Tube Battery
Controller: Intelligent controller. Overload & low voltage protection
Display- LCD 500S
